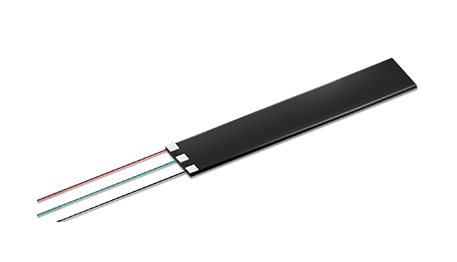

Piezoelectric Bimorph

A Piezoelectric Bimorph is a flexible actuator or sensor made from two piezoelectric layers bonded to either side of a substrate (or directly to each other). When an electric voltage is applied, one layer expands while the other contracts, causing the structure to bend or flex. Conversely, when the bimorph is physically deformed, it generates an electrical signal, enabling it to function as a sensor.

Piezoelectric bimorphs are lightweight, highly sensitive, and capable of precise micro-motion or vibration generation, making them ideal for a wide range of actuation and sensing applications.

🔸 Key Features

• Bidirectional functionality – works as both actuator and sensor

• Compact and lightweight – suitable for space-limited designs

• Low power consumption – efficient energy conversion

• Wide frequency response – usable in both static and dynamic systems

• Precise bending control – high resolution motion

🔸 Applications

• 📹 Camera Lens Auto-Focus Mechanisms

• 📢 Ultrasonic Transducers and Buzzers

• 🧪 Vibration and Pressure Sensors

• 🔍 Micropositioning and Precision Actuators

• 🧬 Medical Devices (e.g., drug delivery systems, micropumps)
